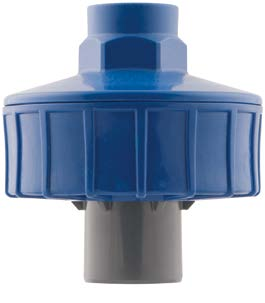

Diaphragm seal MD 11 Plastic version
DIAPHRAGM SEAL MD 11 PLASTIC VERSION
For mounting to Bourdon tube pressure gauges or pressure switches.
Especially for polluted wastewater, fertilizers, corrosive media.
| Make | AFRISO EUROINDEX GMBH |
| Process connection | PVC, PP or PVDF female thread G½ or G¼ |
| Diaphragm | EPDM, TFM-coated, internal |
| Pressure transmission liquid | Glycerine (FM 03) |
| Nominal pressure | PN 10 |
| Operating temperature range |
PVC: 0 / 60 °C PP: -10 / +80 °C PVDF: -20 / +100 °C |
