ELEKTROLYSIS
General Information

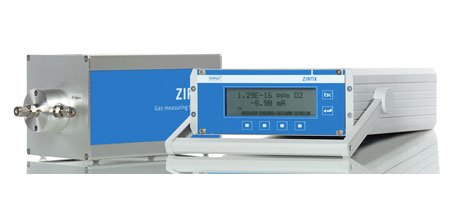

Electrolysis Device SGM5EL The electrolysis device SGM5EL is based on the approved zirconia solid electrolyte technology. It serves the convenient dosing or removal of oxygen from protective gases (N2, Ar) or reactive gas flows (e.g. inert gas N2/H2) in order to produce gases with defined oxygen concentration or gases with a requested reduction force. The SGM5EL is a combination of a complex cell module with a control unit. Main parts of the cell module are an electrolysis cell and a potentiometric measuring cell. The potentiometric cell allows an exact measurement of the oxygen concentration adjusted by electrolysis cell. The necessary cell temperature is guaranteed by an electrical heating. Besides its application as a test gas generator, the SGM5EL can be used for the solid electrolyte coulometry. In this case, the cell voltage of the potentiometric cell is kept constant as a set point of a control circuit. The resulting current of the electrolysis cell is proportional to the oxygen transposition with the gas flow. The current-time integral helps to quantify the substituted amount of oxygen.
- 1.Production of defined test gases, e.g., for sensor tests
- 2.Examination of oxygen permeation of polymers (e.g., foils)
- 3.Controlled outgassing of reactors
- 4.Calibration and monitoring of TA-Systems (TG, DTA, TMA, DSC)
- 5.Examination of the decomposition gases of thermal analysis
| Range (Measuring cell) | 20.64*10⁴...0.5 Vol.-ppm O₂, up to 10⁻²⁴ Vol.-ppm possible |
| Carrier gas (for electrolysis) | Protective gas (N₂, Ar, CO₂) or inert gas |
| Accuracy | Relative error <5% |
| Test gas flow | 5...10 l/h |
| Max. test gas pressure | 100 mbar over pressure |
| Max. test gas temperature | 80 °C at gas input |
| Pressure drop over cell module | Approx. 1 kPa (100 mm WS) at 10 l/h |
| Dimensions (T x B x H) | Electronic unit: 320 x 240 x 90 mm³ Cell module: 262 x 119 x 119 mm³ |
| Weight | Electronic unit: 2.5 kg Cell module: 1.5 kg |
| Gas connection | 3 mm Swagelok®, others on request |
| Protection degree | Electronic unit: IP 30 Cell module: IP 20 |
| Working conditions | 10...40 °C, max. 80% rel. humidity |
| Storing conditions | -20...60 °C, max. 95% rel. humidity |
| Interface | RS232 |
| Power supply | 110...230 V / 50 ... 60 Hz |
| Power consumption | 50 VA |
| Keypad | Membrane keypad (6 keys) |
| Plain text display | LCD dot-matrix |
