Tag: 01-FM-1

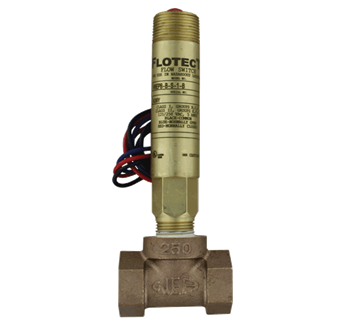

Flow Switch
FLOW SWITCH
| Make | Dwyer Instruments |
| Model | Flotect V6 |
| Service | Gases or liquids compatible with wetted materials |
| Wetted Materials |
|
| Temperature Limits | -4 to 220°F (-20 to 105°C) Standard, MT high-temperature option 400°F (205°C) |
| Pressure Limit | Brass lower body with no tee models: 1000 psig (69 bar) |
| Enclosure Rating | Weatherproof and Explosion-proof. Listed with UL and CSA for Class I, Groups A, B, C, and D; Class II, Groups E, F, and G |
| Switch Type | SPDT snap switch standard, DPDT snap switch optional |
| Upper Body | Brass or 303 stainless steel |
| Process Connection | 1/2" (12.70 mm) male NPT or 1/2" (12.70 mm) male BSPT on models without a tee. |
| Agency Approvals | ATEX, CE, CSA, IECEx, KTL, UL |
