Tag: 01-LS-3

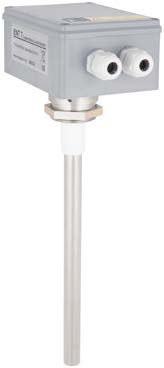

Capacitance Level Switch
CAPACITANCE LEVEL SWITCH
| Make | AFRISO EUROINDEX GMBH |
| Model | CapFox® ENT 7 |
| Capacitance range | 0–200 pF |
| Operating temperature range |
|
| Process connection | G1½B |
| Rod probe |
Stainless steel 316 Ti, partially PP-insulated, probe length 300 mm (Min. length 300 mm – Max. length 1,000 mm) or fully PTFE-insulated, probe length 300 mm |
| Flexible probe |
Stainless steel 316 Ti, fully PP-insulated, probe length 3,000 mm (Min. length 1,000 mm – Max. length 6,000 mm) |
| Switching output | 1 voltage-free changeover contact |
| Contact rating | AC 250 V 4 A (resistive load) |
| W x H x D | Housing: Impact-resistant plastic (ABS), 104 x 65 x 144 mm |
| Degree of protection | IP 65 (EN 60529) |
| Electrical connections | 2 x cable gland PG 11 |
