Tag: 01-LS-7

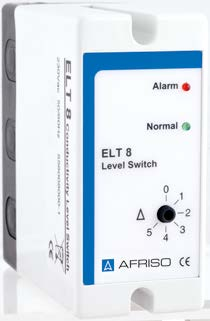

Conductivity Level Switches
CONDUCTIVITY LEVEL SWITCHES
For use with electrically conductive liquids whose level is to be limited or controlled.
| Make | AFRISO EUROINDEX GMBH |
| Model | CoFox® ELT 8 |
| Operating temperature range | Ambient: -10/+60 °C |
| Supply voltage | AC 230 V or DC 24 V |
| Switching outputs | 2 voltage-free changeover contacts Contact rating: AC 250 V, 2 A |
| Visual indication |
|
| Description | Wall mounting housing with a plug-in base made of impact-resistant plastic (ABS) |
| W x H x D | 53 × 113 × 108 mm |
| Degree of protection | IP 30 (EN 60529) |
| Switching rate | 120 V/ VA, 250 V AC/DC, 3/4 reed relay, summary max. 9 A |
| Distance between reed-switches | Minimum 110 mm |
| Ingress protection | IP 65 |
| Dimension of the housing | 116 × 80 × 65 mm |
