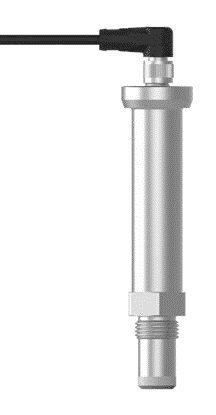

Ultrasonic Level Switch

Ultrasonic Level Switch
ULTRASONIC LEVEL SWITCH

Ideal for applications in which vibration level switches or float switches cannot be used due to the interfering contour.

Make AFRISO EUROINDEX GMBH
Model SonarFox® USG 20
Dynamic viscosity of the medium Max. 10,000 mPa • s
Operating temperature range
  • Medium: -20/+100 °C
  • Ambient: -20/+60 °C
Process pressure 10 bar
Process connection G½
Housing Stainless steel 304 (1.4301)
Process connection Stainless steel 316 L (1.4435)
Sensor surface PEEK
Output
  • ISO 4400 active DC (max. 1 A)
  • Active if "Wetted/Dry", selectable via connection
  • M12 x 1, 4-pin 1 x wetted active DC (max. 1 A)
  • 1 x dry active DC (max. 1 A)
  • M12 x 1, 8-pin 2 x voltage-free changeover contact (max. 0.5 A/30 V)
