Guided Micropulse Level Transmitter PMG 20

Guided Micropulse Level Transmitter PMG 20

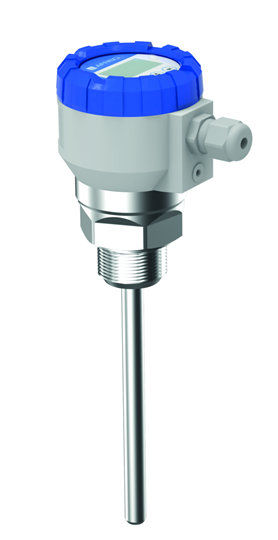

GUIDED MICROPULSE LEVEL TRANSMITTER PMG 20

For universal continuous level measurement in containers, tanks, or silos. Suitable for liquid, powdery, electrically conductive, or non-conductive media. Ideal for changing media. FEP-coated and PFA-coated probes are available for corrosive, highly clean media or food.

Make AFRISO EUROINDEX GMBH
Model PulsFox® PMG 20
Measuring ranges 100 mm to 3000 mm
Operating temperature range
  • Medium: -40/+300 °C
  • Ex version: up to 98 °C
  • Flange: -40/+85 °C
  • High temperature: up to +200 °C
  • Ambient: -30/+70 °C
Programming display 5-digit, 9 mm high, yellow Matrix OLED Resolution 128 x 64 pixels
Supply voltage DC 18–36 V/2-wire for Ex version DC 18–28 V
Output signal 4–20 mA/HART, 2-wire
Degree of protection IP 67 EN 60529
Probe material Stainless steel 316 L
Process connection G1B, stainless steel 316 Ti (1.4571)
Options
  • Other process connections
  • PFA coating/FEP coating
  • Ex version
  • Ex II 1/2 G Ex ia IIB T5 Ga/Gb
