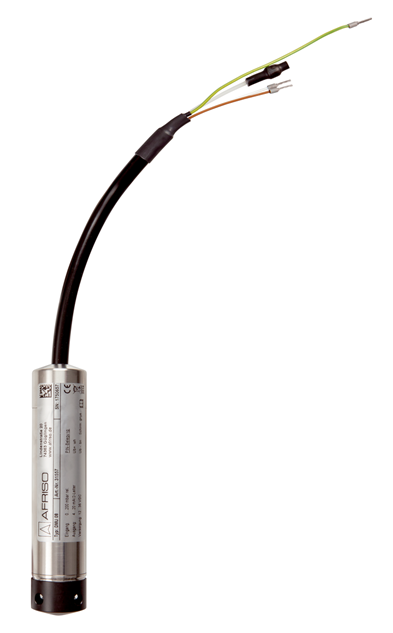

Hydrostatic Level Transmitter – DMU08

Hydrostatic Level Transmitter - DMU08
HYDROSTATIC LEVEL TRANSMITTER - DMU08

For electronic, continuous level measurement, e.g., in wells, drilling holes, water, containers, or in wastewater systems. Suitable for groundwater, wastewater (with optional FEP cable), diesel fuel, and fuel oil.

Make AFRISO EUROINDEX GMBH
Model HydroFox® DMU 08
Measuring ranges Relative pressure 0/100 mbar to 0/25 bar Overpressure safety
Operating temperature range
  • Medium: -10/+70 °C
  • Ambient: -10/+70 °C
  • Storage: -25/+70 °C
Dynamic characteristics Response time ≤ 10 ms
Supply voltage
  • DC 8–32 V
  • EX version DC 10–28 V
Output signal 4–20 mA, 2-wire
Electrical protection Short circuit proof and protected against reverse polarity
Electrical connection (degree of protection) PUR cable (IP 68) With integrated breather tube
Materials
  • Housing: Stainless steel 316 L
  • Diaphragm: Stainless steel 316 L
  • Seals: FKM (Viton)
Options
  • EX version (II 1G Ex ia IIC T4 Ga, II 1D Ex ia IIIC T 85 °C Da)
  • Measuring accuracy: 0.1% FSO
  • FEP cable
  • SIL 2 (IEC 61508/61511)
