DF-MA
Paddle Wheel Flow Transmitter
Starting at $1,083
Starting at $1,083
Made in the USA | For Liquids | up to 36 GPM | up to 1450 PSIG | up to 180 °F | 1/8″ to 1-1/2″ NPT | 4-20 mA, 0-5 VDC, 0-10 VDC
- For Transmission of Measured Flow
- 0(4)–20 mA, 0-5 VDC, 0-10 VDC Outputs
- Flows up to 36 GPM (Water)
- Made in the USA

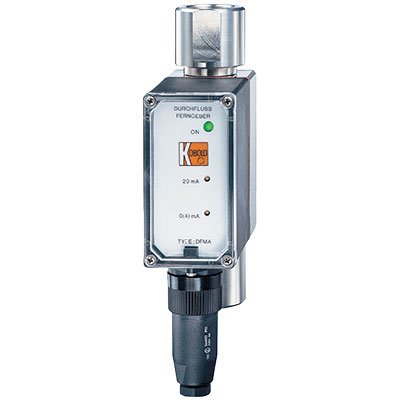

The KOBOLD DF-MA paddle-wheel flow transmitter is a variation on the DF Series paddle flow sensor with the added capability of transmitting measured flow. Like all DF Series flow sensors and controls, the DF-MA is available in six material combinations to withstand exposure to a variety of low-viscosity liquids and aggressive chemicals. This versatility in materials, along with a compact design and an economical price, makes this flow transmitter perfect for numerous industrial and OEM applications.
| Measuring Range | 0.02...0.14 to 1.5...36 GPM |
| Max. Temperature | 180 °F (80 °C) |
| Max. Pressure | 1450 PSIG |
| Fittings | 1/8"...1-1/2" NPT Thread |
| Accuracy | ± 2.5% of Full Scale |
| Media Category | Liquid |
