DON

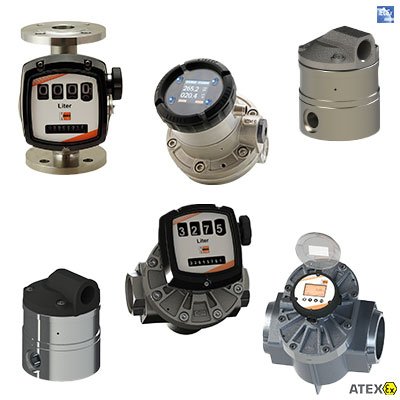

Oval Gear Positive Displacement Flow Meter
Starting at $684
Starting at $684
For Viscous Liquids | Up to 660 GPM | Up to 300° F | Up to 1,450 PSI | NPT or ANSI Connections | Batching and Totalizing | Bi-directional Capabilities | Top Seller
- Aluminum or Stainless Steel Bodies
- Can Measure Viscosities to 1,000,000 cPs (w/Special Cut Gears)
- Operating Pressures to 1,450 PSIG (Model Dependent)
- Electronic Output Options Include Analog and Frequency Outputs, LCD Totalizers, Batch Controllers, U-Pace Electronics: IO-Link and Temperature Measurement
- Mechanical Totalizer (½"...4" Meters Only)
- Bi-directional Flow Sensing with Optional Quadrature Output
- Certifications/Approvals: ATEX
- Top Seller
DON Flow Meters for Viscous Liquids
KOBOLD's DON Oval Gear Positive Displacement Flow Meters are the ideal solution for measuring clean high and low viscosity liquids such as lubricating/hydraulic oils, petroleum, ink, diesel fuels, grease, chemicals, solvents, resins, pastes, and molasses. Due to the mechanical nature of the operating principle, media with particulate matter is not recommended for use with the DON.
New DON with U-Pace Electronics
The DON is now available with our new U-Pace electronics which offer a wide variety of features and easy programming through the touch display. It offers an IO-Link function and totalizing, batching, and switching capabilities. There are two configurable outputs and a grand and resettable totalizer. Temperature measurement is also integral and bi-directional flow measurement is also possible. To learn more about our U-Pace electronics package, view our U-Pace Video.
Reliable Oval Gear Positive Displacement Flow Technology
The heavy-duty industrial oval gear design design employs two precision-machined gears that are turned by the force of the flowing media and they allow a very specific known volume of liquid to pass through the meter with each rotation. These gears enable the DON to precisely measure liquid flow over a very wide viscosity range and provide a high accuracy volumetric flow rate measurement. Visit our article about Positive Displacement Flow Meters to learn all about the technology type and its advantages and limitations.
Ideal for Intermittent and Fluctuating Flow Rates
Because the measurement principle provides a true volumetric flow measurement, the DON is also ideal for flow rates that fluctuate widely and for flow that is intermittent. High accuracy measurement is assured even though these are process variables that would render other flow meter technology types non-compatible.
Higher Pressure Oval Gear Positive Displacement Flow Meters
To accomodate even higher process pressure than our standard DON Oval Gear Flow Meter, KOBOLD also makes the DON-H High Pressure Oval Gear Flow Meter. It offers the exact same rugged and reliable service for high viscosity liquid measurement.
Other Positive Displacement Flow Meters and Gear Meters from KOBOLD
KOBOLD offers a comprehensive line of Positive Displacement Flow Meters including other Oval Gear Flow Meters, Rotary Piston Flow Meters, and Helical Screw Gear Flow Meters.
| Flow Ranges | 0.13...9.5 GPH to 40...660 GPM |
| Line Sizes | 1/8"...4" |
| Fittings | NPT or BSP Threaded, ANSI or DIN Flanged |
| Max. Operating Temperature | Up to 300 °F (150 °C) (Output Option Dependent) |
| Media Category | Liquid |
