Tag: 01-PG-2

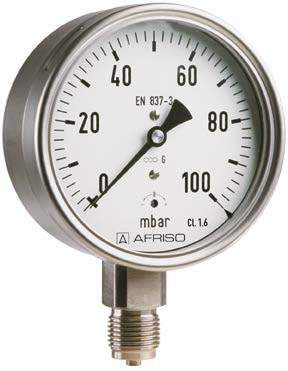

Capsule Pressure Gauge in SS – 63MM TO 160MM
CAPSULE PRESSURE GAUGE IN SS - 63MM TO 160MM
For corrosive gaseous and dry media, also for use in corrosive environments.
| Make | AFRISO EUROINDEX GMBH |
| Accuracy class (EN 837-3/6) | 1.6 |
| Connection | Stainless steel 316 Ti/316 L, bottom or centre back |
| Dial | Aluminium, white; Dial marking black |
| Housing | Stainless steel 304 |
| Seal | FKM (Viton) |
Operating temperature range
- Medium: Tmax = +100 °C
- Ambient: Tmin = -20 °C
- Tmax: +60 °C
Ranges (EN 837-3/5) 0/25 to 0/1,000 mbar and all corresponding vacuum and compound range with overpressure protection.
Bayonet type bezel: Stainless steel 304
