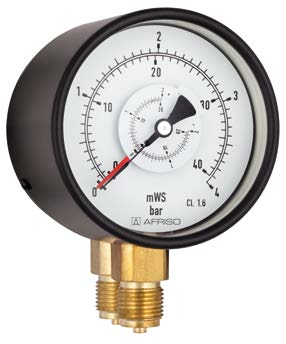

DIFFERENTIAL PRESSURE GAUGE - BOURDON TUBE TYPE
For differential pressure measurement of gaseous and liquid media which are not highly viscous,
do not crystallize and do not attack copper alloys. Specially suitable for heating systems (supply and return pipes).
| Make | AFRISO EUROINDEX GMBH |
| Accuracy class (EN 837-1/6) | 1.6 |
| Connection | Brass, bottom; parallel inline |
| Dial | Aluminum, white; Dial marking black (bar/mWC) |
| Housing | Sheet steel, black |
| Push on bezel | Sheet steel, black |
| Degree of protection | IP 32 (EN 60529) |
| Nominal size | 100 |
Operating temperature range
- Medium: Tmax = +60 °C
- Ambient: Tmin = -20 °C
- Tmax: +60 °C
Ranges (EN 837-1/5): 0/0.6 to 0/60 bar
