Tag: 01-PG-20

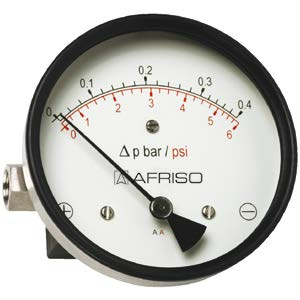

Differential Pressure Gauge – Magnetic Piston Type
DIFFERENTIAL PRESSURE GAUGE - MAGNETIC PISTON TYPE
For differential pressure measurements at very high static pressures.
For gaseous and liquid, non-adhesive media that are not highly viscous.
Particularly suitable for monitoring filters, pumps, pipe systems, and cooling circuits.
| Make | AFRISO EUROINDEX GMBH |
| Accuracy | ±3% of full scale value (at increasing differential pressure) |
| Connection (wetted part) | Stainless steel 316, on left and right sides, opposite each other 2 x G¼ female thread |
| Dial | Aluminum, white; Dial marking black/red (bar/psi) |
| Housing | Stainless steel 304 with rubber sealing ring at the front |
| Seal | NBR (Perbunan) |
| Degree of protection | IP 65 (EN 60529) |
| Nominal size | 80–100 mm |
Operating temperature range
- Medium: Tmax = 80 °C
- Ambient: Tmin = 0 °C
- Tmax: +80 °C
Ranges
(EN 837-3/5) 0.25 bar to 0/10 bar.
