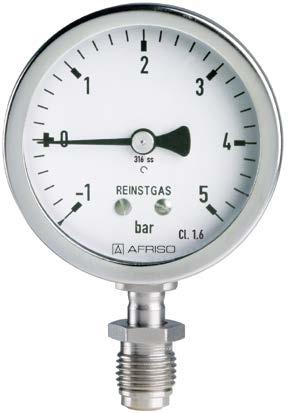

Pressure Gauge for Ultra Pure Gas Application
PRESSURE GAUGE FOR ULTRA PURE GAS APPLICATION
Designed for highly demanding applications in terms of surface quality and purity of the wetted parts, particularly for measuring ultra-pure gases.
| Make | AFRISO EUROINDEX GMBH |
| Accuracy class (EN 837-3/6) | 1.6 |
| Connection | Bottom, either: ¼–18 NPT |
| Dial | Aluminum, white; Dial marking black |
| Housing | Stainless steel 304 with rear blow-out |
| Degree of protection | IP 32 (EN 60529) |
| Nominal size | 100-160 |
Operating temperature range
- Medium: Tmax = +150 °C
- Ambient: Tmin = -20 °C
- Tmax: +60 °C
Ranges (EN 837-1/5)-1/0 to -1/+15 bar 0/0.6 to 0/400 bar
Push on bezel: Stainless steel 304, bare metal surface.
