Tag: 01-PG-13

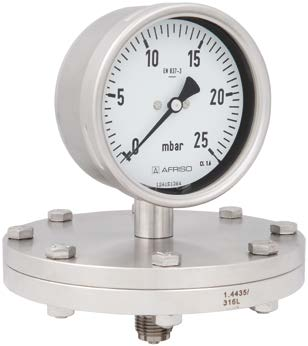

Pressure Gauge with Chemical Seal
PRESSURE GAUGE WITH CHEMICAL SEAL
For corrosive gaseous and liquid media, also for use in corrosive environments. With open
connection flange also suitable for viscous and polluted media.
| Make | AFRISO EUROINDEX GMBH |
| Accuracy class (EN 837-3/6) | 1.6 |
| Connection | Stainless steel 316 Ti/316 L, bottom |
| Dial | Aluminum, white; Dial marking black |
| Housing | Stainless steel 304 with blow-out |
| Nominal size | 100-160 |
| Seal | FPM (Viton) |
| Degree of protection | IP 54 (EN 60529) |
Operating temperature range
- Medium: Tmax = +100 °C
- Ambient: Tmin = -20 °C
- Tmax: +60 °C
Ranges (EN 837-3/50/10 to 0/250 mbar (flange Ø 160)/0.4 to 0/25 bar (flange Ø 100)
Bayonet type bezel: Stainless steel 304.
