Tag: 01-PG-11

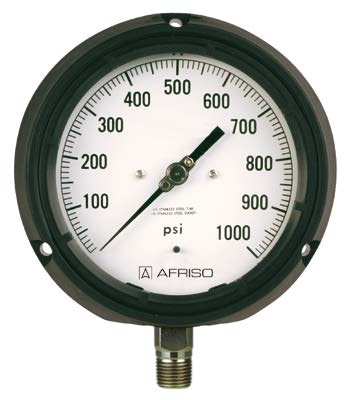

Pressure Gauge with Glass Fibre Reinforced Safety Housing
PRESSURE GAUGE WITH GLASS FIBRE REINFORCED SAFETY HOUSING
For corrosive gaseous and liquid media which are not highly viscous and do not crystallize.
Specially suitable for the oil and chemical industries.
| Make | AFRISO EUROINDEX GMBH |
| Accuracy class | Grade 2A as per ASME B 40.100 (corresponds to class 0.5) |
| Connection | Stainless steel 316 L, bottom or center back |
| Dial | Aluminum, white; Dial marking black |
| Housing | PP-GF20, black, with solid baffle wall and blow-out. Integrated back flange |
| Degree of protection | IP 67 (EN 60529) |
Operating temperature range
- Medium: Tmax = +100 °C
- Ambient: Tmin = -40 °C
- Tmax: +65 °C with glycerine filling / -20/+65 °C
Ranges (EN 837-1/5) -1/0 to -1/+15 bar 0/0.6 to 0/600 bar.
Screw type bezel: PP-GF20, black, internal
