Tag: 01-TG-3

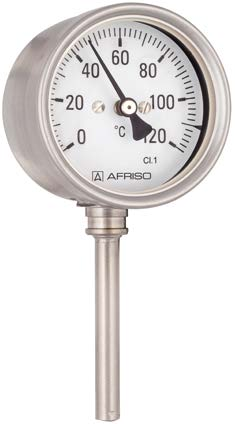

Gas Filled Thermometer
GAS FILLED THERMOMETER
For corrosive media. Meets the most exacting measuring demands, e.g., in process engineering as
well as chemical and food industry applications.
| Make | AFRISO EUROINDEX GMBH |
| Nominal size | 100 – 160 |
| Measuring principle | Pressurised gas filling |
| Accuracy class | 1 (EN 13190) |
| Ranges | -20/+60, 0/60, 0/120, 0/160, 0/200, 0/300, 0/400, 0/500 °C |
| Operating pressure at thermowell | Max. 10 bar (up to 300 °C) |
| Degree of protection | IP 65 (EN 60529) |
| Mounting position | Centre back or bottom or with joint |
| Housing | Stainless steel 304 |
| Bayonet type bezel | Stainless steel 304 |
