Tag: 01-PT-8

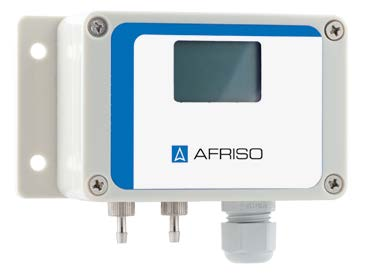

Differential Pressure Transducer – DMU20D
DIFFERENTIAL PRESSURE TRANSDUCER - DMU20D
The differential pressure transducer DMU 20 D can be used with all dry, gaseous, non-corrosive
media. The device detects even smallest differential pressures and is particularly suitable for
heating, air conditioning, and ventilation applications. Clean rooms and filter monitoring are
other application areas.
| Make | AFRISO EUROINDEX GMBH |
| Display |
2-line LC display Visible area: 32.5 × 22.5 mm Accuracy: 0.1 % ± 1 digit |
| Measuring accuracy | ± 0.5 % FSO BFSL |
| Supply voltage |
DC 11–32 V / 2-wire DC 19–32 V / 3-wire |
| Output |
0(4) – 20 mA / 3-wire 0 – 10(5) V / 3-wire |
| Housing | Plastic (ABS) |
| Process/pressure connection | Brass, nickel-plated hose olive Ø 6.6 × 11 mm, for flexible hoses with Ø 6 mm |
| Wetted parts | Pressure connection, PVC/silicone hose, sensor |
| Degree of protection | IP 54 (EN 60529) |
| Electrical protection | Protected against short circuit and reverse polarity |
| Approvals |
EMC Directive: 2014/30/EU RoHS Directive: 2011/65/EU CE conformity |
