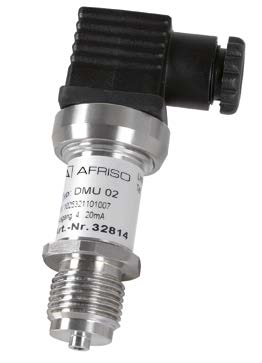

Pressure Transducer – DMU02 – 0.5% ACCURACY, RANGE UPTO 1000 BAR
PRESSURE TRANSDUCER - DMU02 - 0.5% ACCURACY, RANGE UPTO 1000 BAR
Electronic pressure measurement in industrial applications, e.g., hydraulic, pneumatic, gas industry,
refrigeration, automation, medical, as well as general mechanical and plant engineering applications.
| Make | AFRISO EUROINDEX GMBH |
| Measuring accuracy | ≤ ±0.5 % FSO |
| Measuring ranges | Relative pressure: -1/0 to -1/+24 bar, 0/0.6 to 0/1,000 bar |
| Operating temperature range |
Medium: -25/+125 °C Ambient: -25/+85 °C |
| Response time | < 1 ms |
| Process connection | G1/8 (EN 837-1/7.3) |
| Materials Housing | Stainless steel 304 |
| Pressure connection | Stainless steel 630 |
| Seal | Without Seal |
| Output signal | 4-20 mA, 2-wire or 0-10 V, 3-wire |
| Approvals |
EMC Directive 2014/30/EU RoHS Directive 2011/65/EU PED 2014/68/EU CE conformity |
