Probe Electronics E2000
General Information

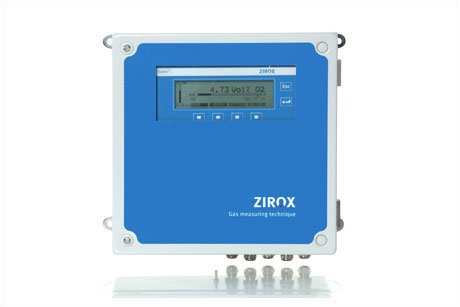

The Electronic Unit E2000
The electronic unit E2000 is a comfortable device for the use of ZIROX oxygen probes. The signals of ZIROX probes are recorded with the E2000, processed to the oxygen concentration (normally in Vol.-%) according to the NERNST equation and provided by standard interfaces.
The electronic unit E2000 supplies the probe with reference air via an internal pump. Additionally, the E2000 accomplishes the power supply and the heating control for heated ZIROX probes. Furthermore, the probes are monitored by the E2000 via cyclic measurements of the cell resistance. An error message is displayed as necessary.
The user can program two limit values (output via relay). In incompletely burnt gases (reducing conditions), more values can be calculated (air factor, dew point, H2O/H2-ratio, CO2/CO-ratio, c(CO2) and c(H2O)) in the water gas equilibrium. Precondition: known fuel gas composition, e.g., C/H-ratio.
If requested, the E2000 can be delivered with an automatic calibration function.
- 1.Signal processing and display of ZIROX probes measuring values
- 2.Calibration and monitoring function for ZIROX probes
- 3.Measuring value output via standard interfaces
- 4.Process monitoring via standard interfaces
- 5.Customized solutions
- 6.Auto-calibration function (option)
| Signal Input | Cell and thermal voltage ZIROX probes |
| Range | 0...20.64 Vol.-% O2 (up to 100 Vol.-% on request) |
| Accuracy | Relative error < 5 % |
| Reference Gas Supply | Via internal pump (flow monitored) |
| Plain Text Display | LCD dot-matrix |
| Keypad | 6 membrane keys |
| Digital Interface | RS232 |
| Output |
2 potential-free current outputs 0/4...20 mA, adjustable (alternative: voltage output 0...5/10 V) 2 programmable limit values (relay output) Alarm message (relay output) |
| Power Supply | 110-230 V, 50-60 Hz |
| Dimensions | 300 x 300 x 120 mm³ |
| Weight | Approx. 4 kg |
| Protection Degree | IP65 |
| Working Temperature | 0...+50 °C, 0...95 % relative humidity |
| Storage Temperature | -20...+60 °C, 0...95 % relative humidity |
