Probe Electronics E2010
General Information

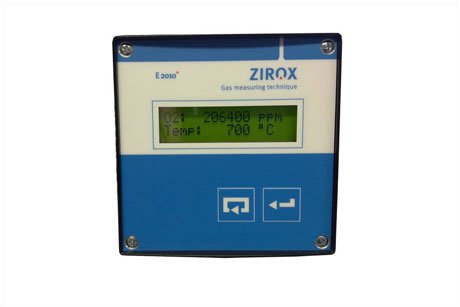

The Electronic Unit E2010 The electronic unit E2010 is the basic device for the use of ZIROX oxygen probes. The signals of ZIROX probes are recorded with the E2010, processed to the oxygen concentration according to the NERNST equation, and provided by a standard interface (4-20 mA). The E2010 realizes the power supply and the heating control for heated ZIROX probes.
Features of ZIROX Probes
- 1.Signal processing and measuring value display for ZIROX probes
- 2.Measuring value output via standard interface
- 3.Power supply and heating control for heated ZIROX probes
Technical Data - Probe Electronics E2000
Technical Data - Probe Electronics E2000
| Signal input | Cell and thermal voltage ZIROX probes |
| Range | 0...20.64 Vol.-% O₂ (up to 100 Vol.-% on request) |
| Accuracy | Relative error < 5% |
| Reference gas supply | None, must be supplied by user |
| Plain text display | LCD dot-matrix, 2 x 16 characters |
| Keypad | 2 membrane keys |
| Output | 4...20 mA (corresponds to 0...20 Vol.-% O₂) |
| Power supply | 24 V DC +/- 10%, 5 A |
| Dimensions | 96 x 96 x 125 mm³ |
| Weight | Approx. 650 g |
| Protection degree | IP30 (Front IP52) |
| Working temperature | 0...+40 °C, 0...95% relative humidity |
| Storage temperature | -20...+50 °C, 0...95% relative humidity |
