Flue Gas Probes
General Information

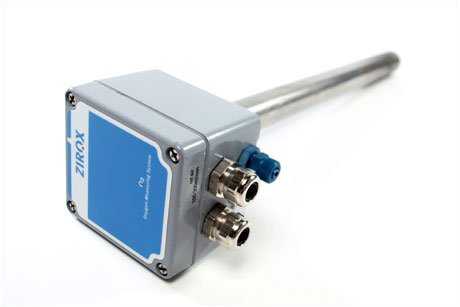

ZIROX flue gas probes (SS31) are robust sensors which serve the λ-determination in large-scale firing plants as well as the measurement of oxygen partial pressure of furnace atmosphere.
The probes are calibration-, drift- and maintenance-free. During measurements in reducing atmosphere, a falsification of the gas composition caused by cooling of the measuring gas in a suction line does not occur. An integrated heater provides the working temperature. The use of high-quality components and materials guarantees high long-term stability.
Technical Data Oxygen Probe SS31H
Below are the detailed technical specifications of the product.
| Length | 300...1800 mm |
| Diameter | 25 mm |
| Weight | 1...3.5 kg |
| Material | 1.4841 |
| Dimension clamp head | 75 x 80 x 60 mm |
| Clamps | 5 x Phönix MBK 2,5/E |
| Protection degree | IP52, IP65 on request |
| Power supply | 36 V (DC oder AC) |
| Heater resistance AC / DC | 8 Ohm |
| Heating current AC / DC | 4.5 A |
| Heating power AC / DC | 160 VA |
| Heater control | max. cycle time at PWM 500 ms |
| Range | -0.01...20.6 Vol.-% O2 |
| Accuracy | < 5 % rel. error |
| Working temperature | 700...800 °C |
| Offset | -2 m...-10 mV |
| Sensor voltage (5.0 Vol.-%, 800 °C) | -33.1 mV |
| Thermocouple | Type B (800 °C corresponds to 3.2 mV) |
| Flow measuring gas | max. 10 m/s |
| Reference gas | Ambient air |
| Flow reference gas | 5...10 l/h |
Clamp Assignment
| (1) Ground | AGND |
| (2) Sensor voltage | -Uz |
| (3) Thermal voltage | +Ut |
| (4) Heating | UH |
| (5) Heating | UH |
Mounting recommendation:
stuffing box or cutting ring fitting
Option:
Test gas channel (for in-situ check of the probe)
Immersion sleeve (probe protection at gas flow > 10 m/s)
