Compact Resistance Thermometer – WTH23 – Upto 180 Deg C

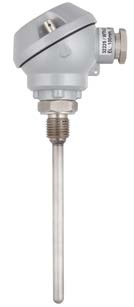

COMPACT RESISTANCE THERMOMETER - WTH23 - UPTO 180 DEG C
Compact screw-in resistance thermometer specially for heating, ventilation and air conditioning applications.
| Make | AFRISO EUROINDEX GMBH |
| Sensor | 1 × Pt 100, 2, 3 or 4-wire; Class B, IEC 751 |
| Thermowell | Ø 6 mm, stainless steel 316 Ti |
| Process connection | G¼B stainless steel 316 Ti |
| Installation length | 100 mm |
| Connection head (degree of protection) | Type J, aluminium die cast (IP 54) |
| Measuring range | -35/+180 °C |
