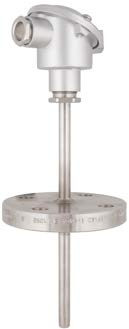

Resistance Thermometer – WTH27 – Flanged – Upto 400 Deg C
RESISTANCE THERMOMETER - WTH27 - FLANGED - UPTO 400 DEG C
Flanged resistance thermometer for medium pressure and flow loads.
| Make | AFRISO EUROINDEX GMBH |
| Sensor | 1 × Pt 100, 2, 3 or 4-wire; Class B, IEC 751 |
| Flanged thermowell | Several parts, Ø 11 × 2 mm Flange connection as per EN 1092-1 type B, DN 25, PN 40 Stainless steel 316 Ti |
| Installation length | 100, 160, 250, 400 mm |
| Connection head (degree of protection) | Type B as per DIN 43729 Aluminium die cast (IP 54) |
| Measuring range | -35/+400 °C |
