Tag: 01-RTH-6
Resistance Thermometer – WTH27 – Flanged – Upto 400 Deg C

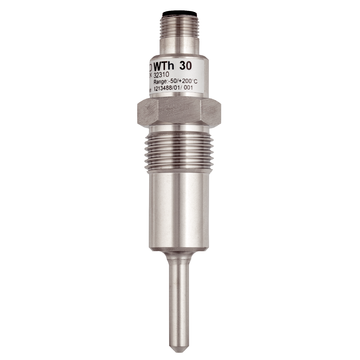

RESISTANCE THERMOMETER - WTH30 - HYGIENIC APPLICATION
Resistance thermometer for hygienic processes, e.g. food, beverages, pharmaceutical, biotechnology applications.
| Make | AFRISO EUROINDEX GMBH |
| Sensor | 1 × Pt 100, 2, 3 or 4-wire; Class B, IEC 751 |
| Thermowell | Ø 9 × 1 mm, stainless steel 316 Ti |
| Process connection | Either clamp, screw connection DIN 11851, weld-in ball, weld-in socket |
| Installation length | 100, 125, 160, 250, 400 mm |
| Connection head (degree of protection) | Type B as per DIN 43729 Aluminium die cast (IP 54) |
| Measuring range | -35/+300 °C |
