KSM
All Plastic Flow Meter and Switch
Starting at $236
Fast Delivery
Starting at $236 Fast Delivery
Made in the USA | For Liquids | Direct Reading Scales for Water or Air | Large, Easy to Read Scale | Shock and Corrosion Resistant | Up to 260 GPM or 400 SCFM | Up to 145 PSI
- Shock and Corrosion Resistant
- Direct Reading Scales for Water or Air
- Large, Easy-To-Read Scale
- Made in the USA
- Quick Delivery
- BABA (Build America, Buy America) Compliant

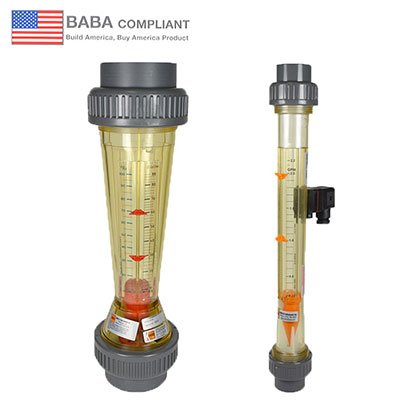

The KOBOLD KSM series plastic variable area flow meter with flow switch is an excellent choice for applications with aggressive media. There are no metal parts contacting the fluid. Measuring tubes are polyamide or polysulfone with other wetted parts made of PVDF, PVC and EPDM. These rotameters are equipped with a scale for water or air and a percentage scale, as well as two adjustable markers and a PVC glue connection with cap nut. The KSM series variable area flow meter measuring tube is available in polysulfone for very corrosive media and polyamide for less aggressive media. Both materials are rugged and shock resistant.
| Measuring Range | 0.06...0.66 to 35...264 GPM / 0.5...3 SCFM to 50...400 SCFM |
| Fittings | 1"...2½" Glue Socket or NPT Thread |
| Body Material | Polyamide, Polysulfone |
| Max. Pressure | 145 PSIG |
| Max. Temperature | 140 °F (60 °C) (w/PVC Connections) |
| Accuracy | ± 4% of Full Scale |
| Contact | Optional Reed Switch |
| Media Categories | Liquid or Gas |
