KSV

Economical Micro Rotameter

Starting at $138 Fast Delivery

Made in the USA | Liquids or Gas | Low Volume Measurement | Up to 20 GPH or 100 SCFH | Up to 248 °F | Up to 87 PSI | Resistant to Alkalines and Acids | Optional Needle Valve

Product Features
Product Features
  • ± 6% Full Scale Accuracy
  • ± 1% Full Scale Repeatability
  • Excellent Resistance to Acids and Alkaline Solutions
  • Compact
  • Easy to Read and Install
  • Convenient Panel Mounting
  • Made in the USA
  • Quick Delivery

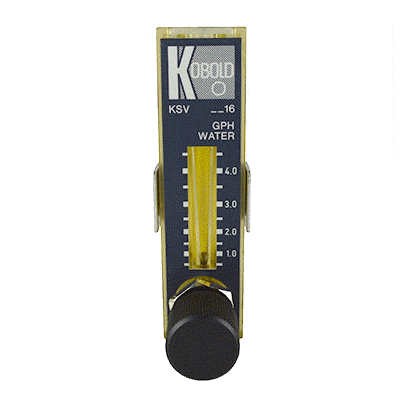

The KOBOLD KSV micro flow meter is a low volume measuring device calibrated for the flow of water or air. This micro rotameter has a plastic body with metal fittings and is kept leak-tight through the use of O-ring seals. The floats are stainless steel, glass, hard metal, or titanium, depending on the measuring range. The customer has a choice of various plastics for the body and metals for the fittings. It is supplied with or without a needle valve, depending upon the model. We generally recommend that the needle valve version be used to help stabilize the float during the introduction of media (particularly gases) into the flow meter.

Product Specifications
Product Specifications
Measuring Range Liquid 0.04...0.4 GPH to 2...20 GPH
Measuring Range Gas 0.3...3 SCFH to 10...100 SCFH
Fitting 1/8" NPT Thread
Body Material Polysulfone
Max. Pressure 87 PSIG (6 BAR)
Max. Temperature 248 °F (120 °C)
Accuracy ± 6 % FS
Option Needle Valve
Media Categories Liquid or Gas
