SV
Variable Area Float-Type Flow Meters and Switches
Starting at $340
Fast Delivery
Starting at $340 Fast Delivery
Made in the USA | For Liquids or Gas | as Low as 0.075 GPM or 0.25 SCFM | up to 145 PSIG | up to 212 °F | 1/4″ to 1-1/4″ NPT | N/O or SPDT Contact
- ± 5% Full Scale Accuracy
- Small, Compact Design
- Direct Reading Scales for Water and Air
- Wide Measuring Range
- Vertical Connections for Easy Installation
- Certifications/Approvals: cCSAus
- Made in the USA
- Quick Delivery
- BABA (Build America, Buy America) Compliant

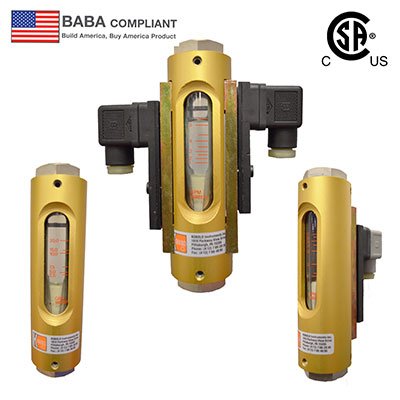

KOBOLD SV flow meters and flow switches work on the well-known float system, but without the use of an open conical measuring tube. Instead, these metal rotameters use a cylindrical control tube with a conical groove along its axis. The upper edge of the float indicates the flow on the measuring glass, which is calibrated in GPM or SCFM.
| Liquid Ranges | 0.075...0.35 to 2.5...40 GPM |
| Gas Ranges | 0.25...1.25 to 10...150 SCFM |
| Fittings | ¼"...1¼" NPT Threads |
| Material | Ni-plated Brass, SS |
| Max. Pressure | 145 PSIG |
| Max. Temperature | 160°F (70 °C) / 212 °F (100 °C) |
| Accuracy | ± 5% FS |
| Option | N/O or SPDT Reed Contact |
| Media Categories | Liquid or Gas |
