USR
Glass Tube Variable Area Flow Meter Manifold Valve Block
Starting at $671
Starting at $671
Up to 24 Flow Meters | Glass Tubes for Direct Observation | Up to 230 PSI and 210 °F | 1″ NPT Inlet | 0.01…0.1 to 0.25 to 2.5 GPM
- Variable Area Flowmeter Design for Water and Water-Based Liquids
- Independent Control Valves
- Up to 24 Flowmeters Can be Assembled in a Block
- Sample Applications: Cooling Circuits and Pumps
- Glass Tube Allows Direct Flow Rate Observation

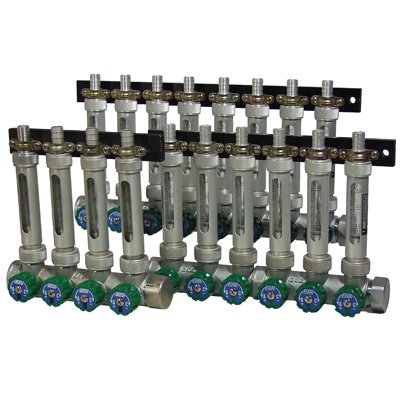

The KOBOLD USR Glass Tube Variable Area Flow meters with Manifold Valves for liquids operate on the variable-area (suspended float) principle: that is, the installation position is vertical and the direction of flow is from bottom to top.
For centralized flow measurement, found in applications like cooling systems, we recommend manifold flow meters for convenient and efficient installation. Up to 24 flow meters can be assembled in a block, provided that maximum flow rate in each unit does not exceed 2.64 GPM. The flow ranges and outlet connections of each individual rotameter unit can be determined independently from the others.
| Measuring Range | 0.01...0.1 to 0.25...2.5 GPM |
| Accuracy Class | 2.5 acc. to VDI/VDE 3513 |
| Maximum Pressure | 230 PSIG |
| Maximum Temperature | 210° F (100 °C) |
| Inlet Process Connection | 1" NPT Thread via Adapter |
| Outlet Process Connection | 1/4" NPT, 3⁄8" NPT, Hose Connection Ø10, Ø13, Ø15mm |
| Wetted Materials | Glass, PTFE, SS, Nickel-Plated Brass, FKM, EPDM, or NBR Seals |
| Media Category | Liquid |
