VKA
OEM Viscosity Compensated Flow Meter
Starting at $545
Fast Delivery
Starting at $545 Fast Delivery
Made in the USA | For Liquids | up to 26 GPM | up to 26 GPM | up to 3600 PSIG | up to 212 °F | 1/2″ to 3/4″ NPT | up to 540 cSt Media Viscosity
- All Metal Body
- Switch Only, Meter Only, or Meter/Switch Versions
- Pressures to 3600 PSI
- Certifications/Approvals: cCSAus
- Made in the USA
- Quick Delivery
- Sample Applications: Lubrication Circuits, Pulp and Paper, Hydraulics, Extraction Machines, and Printing Machines
- BABA (Build America, Buy America) Compliant

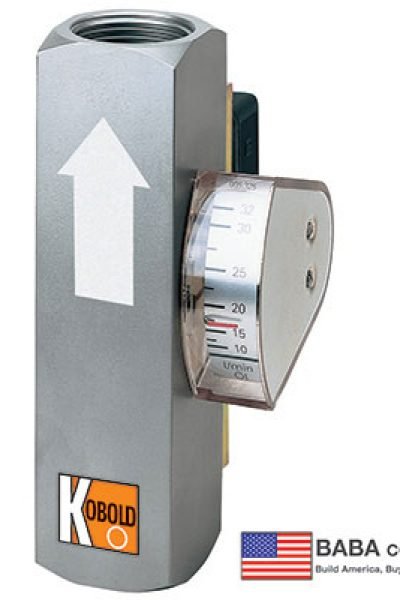

Looking for a low cost, viscosity-compensating flow meter that won’t break the budget? Look no further than the KOBOLD VKA line of viscosity-compensated flow meters! The VKA OEM flow meter combines proven and reliable construction with affordable pricing. Available for flow rates from 2 GPH to 26 GPM, the VKA viscosity-compensated rotameter is a viable alternative to our VKG and VKM series flow meters. Internal modifications reduce the pressure loss through the VKA OEM flow meter to 8 PSI, while still maintaining a compensated viscosity range of 30 to 540 cSt.
| Measuring Ranges | 2...6.3 GPH to 8...26 GPM |
| Fittings | 1/2" or 3/4" NPT Threads |
| Material | Ni-Plated Brass |
| Viscosity Range | 30-540 cSt |
| Temperature Range | -13...212 °F (100 °C) |
| Max. Pressure | 3600 PSIG |
| Accuracy | ± 4% FS (Add ± 4% for Viscosity Changes) |
| Media Category | Liquid |
