VKP
Plastic Variable Area Flow Meter
Starting at $95
Fast Delivery
Starting at $95 Fast Delivery
Made in the USA | For Liquids | up to 26 GPM | up to 230 PSIG | up to 250 °F | 1/4″ to 1″ NPT | Polysulfone Body | Direct Reading Scales | Reed Contact
- ± 5% Full Scale Accuracy
- ± 1% Full Scale Repeatability
- NPT Fittings
- Polysulfone Construction
- Compact Size
- Direct Reading Scale for Oil and Water
- Made in the USA
- Quick Delivery
- BABA (Build America, Buy America) Complaint

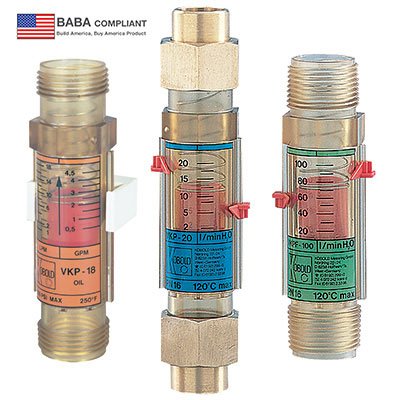

KOBOLD VKP plastic flow meters and flow switches are used wherever inexpensive flow measurement of liquids (eg. domestic services, cooling water, lubrication systems, solar heating, etc.) is to be performed. The VKP series offers a compact design with wetted parts of polysulfone, PVDF and stainless steel. The low cost and available features make these liquid rotameters and flow switches an ideal choice for OEM applications. Flow is read at the upper edge of the float.
| Switching Range | 0.5...5 GPM to 5...26 GPM (Water) / 0.5...4.5 GPM to 3...20 GPM (Oil) |
| Fittings | 1" NPT Standard Threaded, ½" NPT and ¾" NPT Union Fittings (Optional) |
| Body Material | Polysulfone |
| Max. Pressure | 230 PSIG |
| Max. Temperature | 250 °F (120 °C) |
| Accuracy | ± 5 % FS |
| Options | Reed Contact, Union Fittings |
| Media Category | Liquid |
