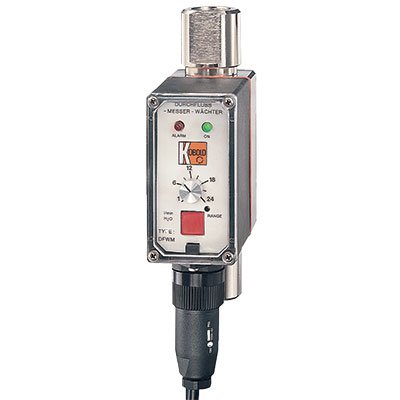

DF-WM

Paddle Wheel Flow Switch

Starting at $1,189

Made in the USA | For Liquids | up to 36 GPM | up to 1450 PSIG | up to 180 °F | 1/8″ to 1-1/2″ NPT | Adjustable Limit Contact | Push Button Alarm Override Switch

Product Features
Product Features
  • Adjustable Limit Contact for Flow Control
  • Push-Button Alarm Override Switch and Potentiometer with Scale for Indirect Flow Measurements
  • Made in the USA
Magnetic Flow Meter

The KOBOLD DF-WM paddle-wheel flow switch is designed for use primarily as a flow monitor, with the additional ability to occasionally meter flow rate. This flow switch uses a paddle wheel to measure flow. Also incorporated is a flow setpoint function (with relay), which can be set by the user to any value within the specified flow range. Through the use of the setpoint adjustment knob, its accompanying scale and a momentary switch (the red button), flow rate may also be approximately determined. This last function is intended only for occasional use. Like all KOBOLD DF flow sensors and controls, the DF-WM is available in six different material combinations for use with a variety of low-viscosity liquids and aggressive chemicals.

Product Specifications
Product Specifications
Measuring Range 0.02...0.14 to 1.5...36 GPM
Max. Temperature 180 °F (80 °C)
Max. Pressure 1450 PSIG
Fittings 1/8"...1-1/2" NPT Thread
Accuracy ± 2.5% of Full Scale
Media Category Liquid
Documents & Videos
Documents
Videos

There are no videos to display at this time. If you think this is incorrect, please contact us and let us know the issue you are having.

Software Downloads

There is no downloads to display at this time. If you think this is incorrect, please contact us and let us know the issue you are having.

Download PDF USA (Datasheet) ⬇️ Installation & Operation Manual ⬇️
