Tag: 01-PG-3

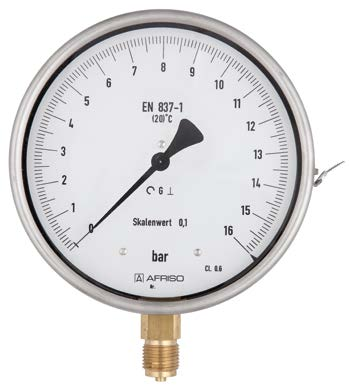

High Precision Pressure Gauge – CLASS 0.25
HIGH PRECISION PRESSURE GAUGE - CLASS 0.25
For gaseous and liquid media which are not corrosive and not highly viscous and which do not crystallise. For very high measuring accuracy.
| Make | AFRISO EUROINDEX GMBH |
| Accuracy class (EN 837-1/6) | 0.25 |
| Connection | Brass, bottom or center back |
| Dial |
Aluminium, white; Dial marking black NG 160 mirror scale 270° NG 250 mirror scale 330° with zero correction |
| Housing | Stainless steel 304 |
| Degree of protection | IP 54 (EN 60529) |
Operating temperature range
- Medium: Tmax = +60 °C
- Ambient: Tmin = -20 °C
- Tmax: +60 °C
Ranges (EN 837-1/5) -1/0 bar to -1/+15 bar 0/0.6 to 0/400 bar.
Bayonet type bezel: Stainless steel 304
