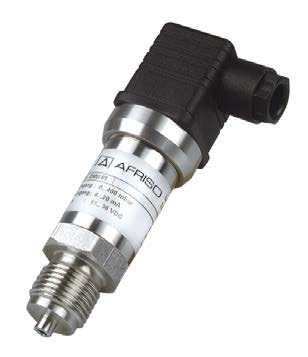

Pressure Transducer – DMU01 – 0.5% ACCURACY, RANGE UPTO 2000 BAR
PRESSURE TRANSDUCER - DMU01 - 0.5% ACCURACY, RANGE UPTO 2000 BAR
Electronic pressure measurement in industrial applications (such as hydraulic and pneumatic applications as well as mechanical and plant engineering).
| Make | AFRISO EUROINDEX GMBH |
| Measuring accuracy | ≤ ±0.5 % FSO (measuring range -1/0 bar < ± 1 % FSO) |
| Measuring ranges |
Relative pressure: -1/0 to 600 bar Absolute pressure: 0/1 to 600 bar |
| Operating temperature range |
Medium: -25/+125 °C Ambient: -25/+85 °C |
| Response time | 2-wire ≤ 10 ms | 3-wire ≤ 3 ms |
| Process connection | G1/8 |
| Materials Housing | Stainless steel 304 |
| Pressure connection | Stainless steel 304 |
| Diaphragm | Ceramic (AI2O3 96%) |
| Seal | FKM (Viton) |
| Output signal | 4-20 mA, 2-wire or 0-10 V, 3-wire |
| Approvals |
EMC Directive 2014/30/EU RoHS Directive 2011/65/EU PED 2014/68/EU CE conformity |
